NetBox device map

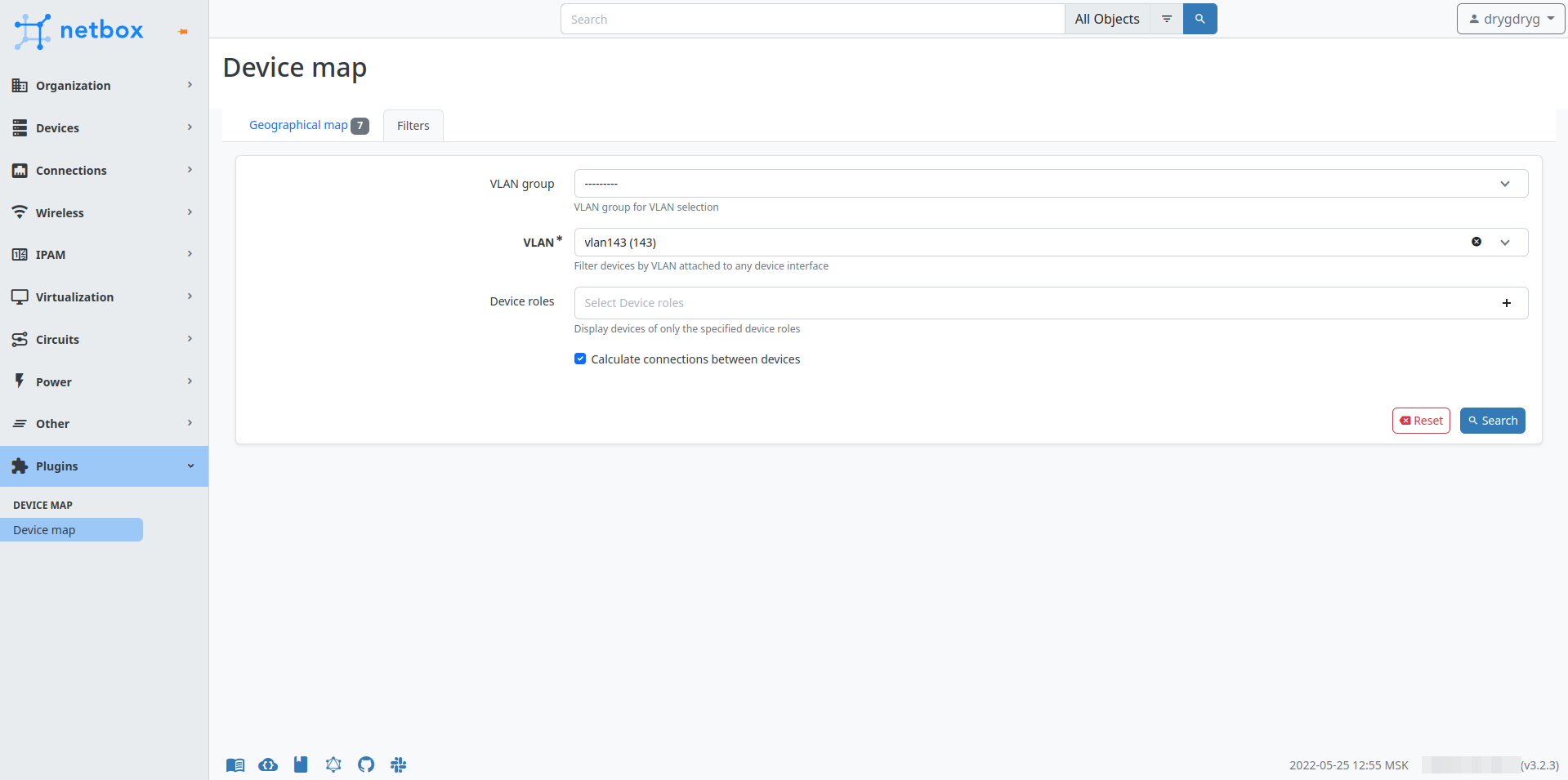

A simple device map plugin with filtering criteria for NetBox

Installation

1. Download plugin distribution from releases.
2. If your NetBox installation uses virtualenv, activate it like this:

source /opt/netbox/venv/bin/activate

3. Install the plugin from the distribution:

sudo pip install /path/to/netbox-plugin-device-map.tar.gz

4. Add plugin to local_requirements.txt:

To ensure plugin is automatically re-installed during future NetBox upgrades, create a file named local_requirements.txt (if not already existing) in the NetBox root directory and list the nextbox-plugin-device-map package:

echo "/path/to/netbox-plugin-device-map.tar.gz" | sudo tee -a /opt/netbox/local_requirements.txt

5. Collect static files:

sudo python /opt/netbox/netbox/manage.py collectstatic

6. To enable plugin, add the plugin's name to the PLUGINS list in configuration.py (it's usually located in /opt/netbox/netbox/netbox/) like so:

PLUGINS = [
    'netbox_device_map'
]

7. Restart NetBox WSGI service to apply changes:

sudo systemctl restart netbox

Configuration

You can customize plugin behavior according to your needs. For example, change the custom field that contains device coordinates or install custom map tiles. Update PLUGINS_CONFIG parameter in the configuration.py like this:

PLUGINS_CONFIG = {
    'netbox_device_map': {
        'device_geolocation_cf': 'coordinates',
        'cpe_device_role': 'CPE',
        'geomap_settings': {
            'attribution': '<a href="https://osm.yourdomain.net">Your company</a> | © <a href="https://www.openstreetmap.org/copyright">OpenStreetMap</a> contributors',
            'tiles': {
                'url_template': 'https://osm.yourdomain.net/hot/{z}/{x}/{y}.png',
                'options': {
                    'maxZoom': 19
                }
            }
        }
    }
}

Settings

Setting	Default value	Description
device_geolocation_cf	geolocation	NetBox custom field for storing geographical location of devices (in the "<latitude>,<longitude>" format)
cpe_device_role	CPE	Name of the NetBox device role that contains CPE devices
geomap_settings	…	Geographical map settings

Geographical map settings

Setting	Default value	Description
attribution	Data by &copy; <a href="https://openstreetmap.org">OpenStreetMap</a>	Attribution text in the lower right corner of the map
crs	EPSG3857	Coordinate reference system
tiles	…	Tiles layer settings

Custom tiles layer settings:

Setting	Example value	Description
url_template	https://{s}.somedomain.com/blabla/{z}/{x}/{y}{r}.png	{s} means one of the available subdomains (used sequentially to help with browser parallel requests per domain limitation; subdomain values are specified in options; a, b or c by default, can be omitted), {z} — zoom level, {x} and {y} — tile coordinates. {r} can be used to add "@2x" to the URL to load retina tiles.
options	{'subdomains' : ['a', 'b', 'c'], 'minZoom': 0, 'maxZoom': 18}	Leaflet TileLayer options

Acknowledgements

• Leaflet

Leaflet plugins

• leaflet.fullscreen
• Leaflet-SVGIcon
• leaflet-sidebar
