C-Data ONU tools

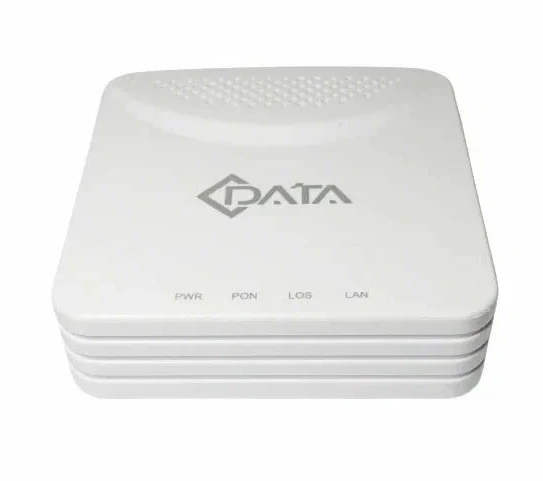

Tools for managing settings of the C-Data FD511G-X xPON ONU (and possibly other models), which are not available from the web interface: enabling/disabling shell access, getting SSH/Telnet password.

Abstract

The ONU web interface (usually available at http://192.168.101.1) allows you to download a configuration backup as a file. This is a regular XML file that is encrypted using XOR encryption with a key of 0x26. The tools presented here are designed to load, read, and modify this configuration file.

Tools

• enable_shell_access.py helps to enable/disable SSH/Telnet root shell access from LAN/WAN and change username & password.
  Usage:

  $ python enable_shell_access.py --help
  usage: enable_shell_access.py [-h] [-a AUTHORIZATION] [-d] [-i {LAN,WAN}] [-p {SSH,Telnet}] [--change-username CHANGE_USERNAME] [--change-password CHANGE_PASSWORD] [host]

  Program to enable or disable Telnet or SSH access to the C-Data FD511G-X ONU

  positional arguments:
    host                  ONU host (IP address or domain). Default: 192.168.101.1.

  options:
    -h, --help            show this help message and exit
    -a, --authorization AUTHORIZATION
                          Web interface authorization credentials, separated by colon. Default: adminisp:adminisp.
    -d, --disable         Disable access. If this argument is not passed, it enables access.
    -i, --interface {LAN,WAN}
                          Interface for enabling access: LAN or WAN. Default: LAN.
    -p, --protocol {SSH,Telnet}
                          Protocol for enabling access: SSH or Telnet. Default: SSH.
    --change-username CHANGE_USERNAME
                          Set new username
    --change-password CHANGE_PASSWORD
                          Set new password


  Usage examples:

  • enable LAN SSH access:

    $ python enable_shell_access.py 192.168.101.1
    Logging in to http://192.168.101.1 with adminisp:adminisp...
    Current SSH credentials:
    username: manu
    password: c8a9b413

    SSH access from LAN enabled
    Uploading new configuration to the ONU...
    Config successfully uploaded. Do you want to reboot ONU now? (Y/n) : Y
    ONU reboot error. The device is probably already rebooting.


  • disable LAN Telnet access:

    $ python enable_shell_access.py 192.168.101.1 -p Telnet -d
    Logging in to http://192.168.101.1 with adminisp:adminisp...
    Current Telnet credentials:
    username: manu
    password: c8a9b413

    Telnet access from LAN disabled
    Uploading new configuration to the ONU...
    Config successfully uploaded. Do you want to reboot ONU now? (Y/n) : Y
    Device is rebooting. Please wait.


  • login with custom web interface credentials:

    $ python enable_shell_access.py 192.168.101.1 -a adminisp:admin1234
    Logging in to http://192.168.101.1 with adminisp:admin1234...
    Current SSH credentials:
    username: manu
    password: c8a9b413

    SSH access from LAN enabled
    Uploading new configuration to the ONU...
    Config successfully uploaded. Do you want to reboot ONU now? (Y/n) : Y
    ONU reboot error. The device is probably already rebooting.


• extract_credentials.py extracts credentials from the binary config file, including SSH and Telnet username & password, and also saves decrypted version of the config file.
  Usage:

  $ python extract_credentials.py ~/config.bin
  File decrypted and saved to "/home/user/config.xml"

  Web interface credentials:
  root-level account:
  username: adminisp
  password: adminisp

  user-level account:
  username: admin
  password: admin


  Shell credentials (Telnet and SSH):
  username: manu
  password: c8a9b413
